A small business network diagram is basically a visual map of your company's entire computer network. Think of it as the blueprint for your IT infrastructure, showing every key device—servers, computers, routers, you name it—and exactly how they all talk to each other. This simple document becomes your command center for troubleshooting, planning for growth, and tightening up security.
Why Your Business Needs a Network Diagram
Let's be honest, the term "network diagram" sounds like jargon reserved for enterprise-level IT consultants. But the reality is much simpler. For any small business, this document is one of the most practical tools you can have in your arsenal. It turns a confusing mess of technical details into a clear, actionable visual.
This isn't about becoming a network engineer overnight. It’s about getting a firm grasp on your business's digital backbone. Without one, you're flying blind.
Pinpoint and Resolve Issues Faster
When your internet slows to a crawl or the network goes down completely, the clock starts ticking. Every minute of downtime costs you money and kills productivity. So often, the real culprit behind a long, expensive troubleshooting session is a simple lack of documentation. When your IT support has to figure out your network from scratch, fixes take longer and cost more.
Imagine this scenario: your sales team's connection is lagging during a critical end-of-quarter push. With a network diagram, a technician can see everything instantly:
- Which network switch the sales team is plugged into.
- If that switch is being shared with other departments that hog bandwidth.
- The exact path their data takes to the internet, including all the firewalls and routers in between.
This visual context helps them isolate the problem in minutes, not hours. They can stop guessing and start systematically tracing the issue from the user's computer all the way back to the source.
A network diagram helps people looking at your network from different points of view speak a common language. It removes the guesswork and provides a single source of truth for everyone involved.
Plan for Strategic and Confident Growth
As your business grows, so does its reliance on technology. Hiring new people, opening another office, or even adding a new cloud service—all these things directly impact your network. A small business network diagram is your number one tool for smart, strategic planning.
Let's say you're about to hire three new team members. Before they even walk in the door, your diagram helps you answer the important questions:
- Do we have enough open ports on our current network switch?
- Will adding three more users overload our Wi-Fi access point?
- Should we upgrade our internet bandwidth to handle the extra load?
This kind of foresight helps you avoid overspending on gear you don't need or, even worse, under-provisioning your network and creating frustrating bottlenecks. You can confidently budget for and buy the right hardware, ensuring new hires have a smooth start.
Bolster Your Network Security and Find Vulnerabilities
Your network diagram is more than just an operational tool; it's a security blueprint. By mapping out every device and connection, you get a bird's-eye view of your potential attack surface. It lets you visually spot and fix vulnerabilities before an attacker can find them.
While you're creating the diagram, you might discover an unsecured guest Wi-Fi network that has a direct line to your main office server. Or maybe you'll realize a critical server is missing a hardware firewall between it and the public internet.
These are the kinds of hidden risks a visual map brings to light. It forces you to think like an attacker, identify the weakest links in your digital chain, and proactively strengthen your defenses.
Taking Stock: Your Network Device Inventory
Before you can draw a single line on your small business network diagram, you have to know exactly what you’re drawing. That means creating a complete inventory of every single device that touches your network. This step is the foundation of an accurate diagram—any mistakes here will mean your final map is flawed from the get-go.
This isn’t just about counting computers and printers. It’s a hands-on investigation to identify, document, and understand every piece of hardware that keeps your business running, from the obvious to the easily overlooked.

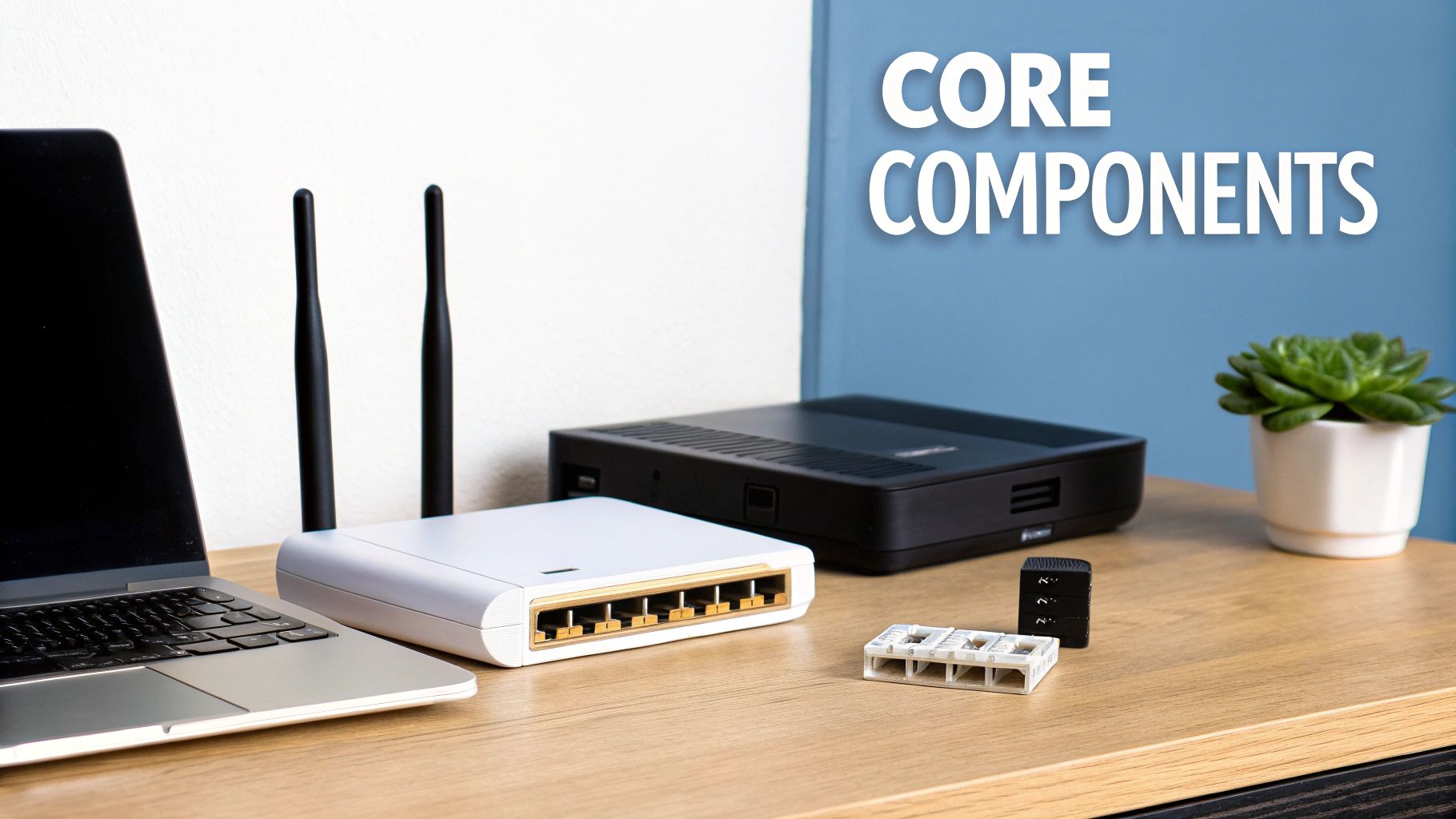

Starting With the Core Infrastructure
The best place to begin is with the core components—the central nervous system of your network. These are the devices that manage and direct all the data traffic flowing through your office.
Start at the source: your internet connection. Find where the internet service provider's (ISP) line comes into the building and trace it to the first piece of equipment. This is usually your primary router, the main gateway connecting your entire office to the outside world.
From there, you'll likely find connections fanning out to other critical hardware:
- Switches: Think of these as the distribution hubs for your network. A single cable might run from the router to a switch, which then provides connections for dozens of office devices. Make sure to document every switch, noting how many ports it has and how many are currently in use.
- Firewalls: This is your primary security gatekeeper. Sometimes it's a standalone appliance, and other times its functionality is built right into the router. It's crucial to identify exactly where your firewall sits in the network chain.
- Servers: These are the powerhouses that host your company files, run specific applications, or manage your databases. You might have physical servers humming away in a closet, or you could be using cloud-based servers that exist virtually. Both types absolutely must be on your inventory list.
Documenting Endpoints and Wireless Devices
Once you have a firm grip on the core infrastructure, it's time to broaden your search to the endpoints. These are all the devices your team interacts with day-to-day, and tracking them down usually requires a thorough walkthrough of your office.
Physically go from desk to desk and room to room. The goal is to document everything that connects to the network, whether it's with a physical cable or wirelessly.
This list should include:
- Desktop computers and laptops
- VoIP (Voice over IP) phones
- Networked printers, scanners, and copiers
- Wireless Access Points (WAPs) that provide your Wi-Fi coverage
And don't forget about modern IoT (Internet of Things) devices. Lots of businesses now use connected security cameras, smart thermostats, or even smart lighting systems. If it has a network connection, it belongs on your inventory list. For each device, jot down key details like its physical location (e.g., "front desk," "Sarah's office"), its main user, and its model number.
Pro Tip: As you inventory your core hardware, physically label it. A simple label maker can save you hours of confusion down the road. Labeling your main router, switches, and servers with clear names that match your inventory sheet ensures anyone can quickly identify them during a crisis.
Capturing the Essential Details
A simple list of device names is a good start, but a truly useful inventory goes deeper. Adding more specific data transforms your list from a simple checklist into a powerful resource for building an effective diagram and managing your network long-term.
For each piece of hardware, do your best to record:
- Device Type: (e.g., Router, Switch, Server, PC)
- Manufacturer & Model: (e.g., Cisco SG350, Dell PowerEdge T30)
- Physical Location: (e.g., Server Closet, Reception Desk)
- Key Connections: Note what the device is plugged into (e.g., "Connected to Port 5 on Main Switch").
This level of detail is more important than ever as networks grow in complexity. The global enterprise network infrastructure market, which supports businesses of all sizes, was valued at $68.94 billion in 2024 and is projected to hit $115.87 billion by 2034. This growth is fueled by advancements like cloud services and 5G, which make a clear understanding of your network's components essential. You can discover more about these network infrastructure trends and their impact on businesses.
Choosing Your Network Diagramming Software
Alright, you've got your full device inventory. Now for the fun part: picking the right tool to actually draw your small business network diagram. The market is flooded with options, from totally free web apps to powerful, enterprise-grade platforms.
Honestly, you don't need the most expensive or complex program to create a useful map. The goal is to find software that hits that sweet spot between being easy to use and having the features you actually need. Let's break down what really matters.
Key Factors for Selecting a Tool
It's easy to get bogged down comparing feature lists. Instead, let's focus on what will make a real difference in your day-to-day.
- Learning Curve: How quickly can you get started? A good tool feels intuitive. You want a drag-and-drop interface that lets you build your network map without having to watch hours of tutorials first.
- Icon Libraries: Does it come with a solid set of standard network icons? Having recognizable symbols for your routers, switches, firewalls, and servers is crucial. It makes the diagram instantly understandable to anyone, from a new hire to your IT consultant.
- Collaboration Features: Can you work on the diagram with others? If you're teaming up with an IT provider or have multiple people on your staff who need to make updates, real-time collaboration is a lifesaver.
- Export Options: How easy is it to share your work? You'll want to save the diagram in common formats like PDF for printing, PNG for reports, or even a file type that other diagramming tools can open.
The best software isn't the one with the most bells and whistles; it's the one you'll actually use. I always tell clients to prioritize a clean interface and a quick learning curve over a bunch of advanced options they'll never touch.
Comparison of Network Diagramming Tools
To make this easier, I've pulled together a few of the most popular choices for small businesses. Each one serves a slightly different need, so you can find a fit whether you're a DIY business owner or have a dedicated IT team.
This table breaks down some top contenders to help you choose the right tool for creating your network diagram.
| Tool | Pricing Model | Key Features | Best For |
|---|---|---|---|
| Diagrams.net (formerly Draw.io) | Completely Free | Web-based and dead simple to access; surprisingly deep icon library; integrates with Google Drive and OneDrive. | Quick, no-cost diagrams and businesses that want an effective tool without a subscription. |
| Lucidchart | Freemium & Subscription | Excellent for real-time collaboration; huge template library; very polished user interface. | Teams that need to build diagrams together and businesses wanting professional-grade templates. |
| Microsoft Visio | Subscription (Microsoft 365) | The industry standard for complex technical diagrams; deep integration with other Microsoft apps; advanced data-linking. | Businesses already deep in the Microsoft ecosystem or those needing highly detailed, data-driven diagrams. |
In my experience, a free tool like Diagrams.net is more than enough for many small businesses. It has all the core features you need to map your infrastructure clearly.
However, if you know you'll be collaborating heavily or want the professional polish that comes from pre-made templates, a paid service like Lucidchart is a worthwhile investment. If you want to see how these elements look in a finished product, grabbing a network diagram template can give you a fantastic head start.
At the end of the day, the software is just a means to an end. The real prize is having a clear, current diagram that acts as the single source of truth for your network. Just pick the tool that feels right and get started.
Building Your Network Diagram From Scratch
Alright, you've done the legwork and have a complete inventory of your devices. Now for the fun part: translating that list into a powerful visual guide. This is where you'll build the small business network diagram that becomes your single source of truth for everything tech-related. It might sound complex, but the process is surprisingly logical.
We'll start by mapping out the absolute core of your network—the internet connection and your main router. From that central point, we’ll branch out, adding foundational hardware like switches and firewalls before connecting all your endpoint devices.

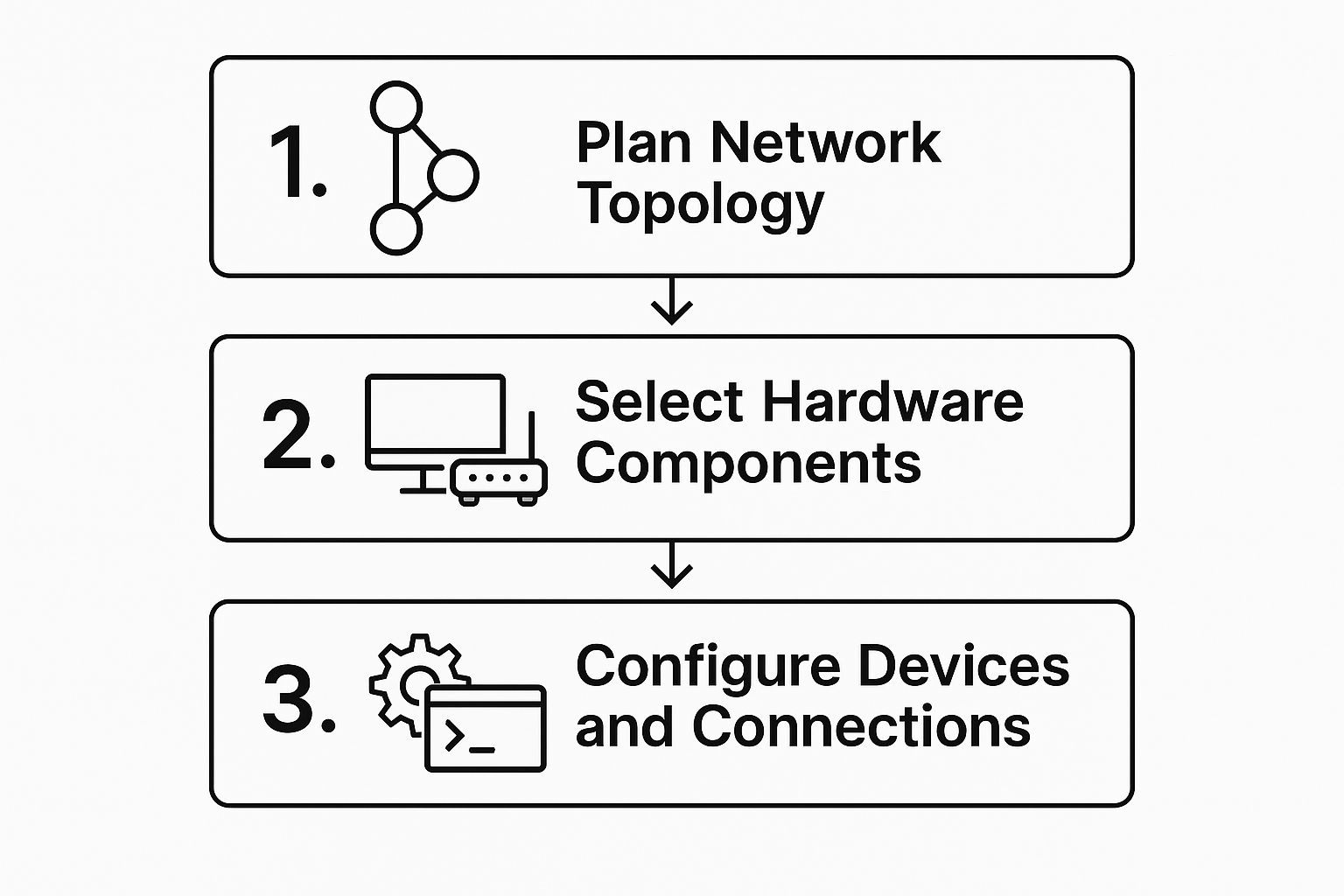

Think of it as telling the visual story of how data flows through your business. This infographic breaks down the high-level stages to give you a clear picture of the workflow.
As you can see, it’s a straightforward path from planning and hardware selection right through to a fully configured and organized network.
Mapping Your Core Infrastructure First
Every great map needs a starting point. For your network diagram, that point is your link to the outside world. Start by dropping an icon for the internet—usually shown as a cloud—at the top or edge of your canvas.
From there, draw a line from the cloud icon to your primary router. This is the single most critical connection in your entire network, as this device acts as the main gateway for all traffic.
If you have a separate, dedicated hardware firewall (which is a great idea), place its icon squarely between the internet cloud and your router. This simple placement instantly confirms your first line of defense.
Next up: your network’s distribution system. From the router, draw a clear connection to your main switch. If that switch then feeds smaller switches in other departments or offices, map those connections out too.
Think of your diagram like a family tree. The internet is the oldest ancestor. Your router is the first generation, switches are the second, and all your computers and printers are the descendants. This top-down approach keeps everything organized and easy to understand.
This structure of routers and switches is the backbone of your small business network diagram. It’s absolutely essential to get this right before you start adding anything else.
Adding Endpoints and Wireless Zones
With your network’s backbone solidly in place, it’s time to connect the devices your team actually uses every day. Grab your inventory sheet and start adding icons for servers, desktop computers, VoIP phones, and networked printers.
For instance, if your inventory shows the three PCs in the accounting department connect to the "Accounting Switch," you'll draw three computer icons and link them directly to that specific switch on your diagram. This is exactly where your detailed inventory work pays off—no more guesswork.
Here are a few tips to keep things clean:
- Group Similar Devices: If you have ten salespeople with identical computer setups, you can use a single PC icon with a label like "Sales Team (x10)" and connect it to the right switch. This trick prevents your diagram from becoming a cluttered mess.
- Represent Wireless Coverage: Place icons for your Wireless Access Points (WAPs) and connect them to their corresponding switch. I also like to draw a circle or shaded area around the WAP icon to represent its general coverage area, creating a "wireless zone."
This step truly brings your diagram to life, showing not just the infrastructure but precisely how your employees and resources plug into it.
Applying Labels and Standard Icons
Let's be honest: a diagram without clear labels is just a bunch of pretty shapes. Using standardized icons and proper labeling is what transforms your map into a tool that anyone—from a non-technical manager to a seasoned IT pro—can understand at a glance.
Most good diagramming software includes libraries full of standard network icons. Use them. A recognizable firewall symbol is instantly clearer than a generic box you've labeled "firewall."
When it comes to labeling, consistency is key:
- Label every device icon: At a minimum, include the device's name from your inventory (e.g., "Main Router," "Server-01").
- Add critical details: For key hardware, it's smart to add extra info like a model number or IP address.
- Label connection lines: You can also label the lines connecting devices to show the connection type, like "Ethernet" or "Fiber Optic."
This level of detail ensures your small business network diagram isn't just a picture. It becomes a professional, high-value document you can rely on for troubleshooting, planning, and security analysis.
Using Your Diagram to Bolster Network Security
A complete small business network diagram is so much more than an IT inventory list or a map for troubleshooting. It's one of the most effective, yet often overlooked, security tools at your disposal. When you can visually see your entire network laid out, you stop thinking about abstract threats and start seeing tangible risks you can actually do something about.
Essentially, it lets you think like an attacker and spot the weak points before they do.
This proactive mindset is no longer optional. The security landscape for smaller companies is brutal. In 2024, the average loss for small and medium-sized businesses from a single security incident hit $1.6 million—a scary jump from the year before. With more than half of SMBs worried about AI-driven attacks but only a fraction implementing basic protections, it's clear that having a solid, visual security strategy is more critical than ever. You can dig deeper into these small business security trends on the LastPass blog.
Layering Security Information on Your Map
Your first move is to enrich your existing diagram with security-specific details. You don't need fancy software for this. Simple color-coding or a few unique icons can transform your map into a security dashboard. The goal is to make your defenses (or lack thereof) instantly obvious at a glance.
Start by marking your most important lines of defense.
- Firewalls: Drop a clear firewall icon between your internet connection and your main router. If you have internal firewalls separating network segments—like keeping guest Wi-Fi isolated from your internal office network—map those out, too.
- VPN Access: Show where your Virtual Private Network (VPN) creates a secure tunnel for remote workers. An icon of a tunnel leading from the "outside world" into your network is a great way to visualize exactly where your encrypted entry points are.
- Antivirus and Endpoint Protection: Use a small shield icon or even a green color overlay on your PCs, laptops, and servers. This simple visual cue immediately tells you which devices are protected by endpoint security software and, more importantly, which ones aren't.
Adding these layers elevates your diagram from a static map of connections to a living, breathing view of your security posture.
Your network diagram should be treated as a confidential document. It’s a blueprint of your digital kingdom, including its defenses. Store it securely and restrict access to only key personnel who absolutely need it.
Identifying Vulnerabilities and Weak Links
Now for the fun part. With your security-enhanced diagram in hand, you can perform a visual risk assessment. Scan the map and start asking the tough questions.
For instance, is that unsecured guest Wi-Fi access point physically located right next to the server that runs your accounting software? Your diagram will make that proximity glaringly obvious, highlighting both a digital and physical risk.
You might also spot a mission-critical server that has no firewall between it and the general office network, leaving it wide open to internal threats. Or maybe you'll notice your point-of-sale terminals are sitting on the same network segment as everyday employee workstations, creating a clean, easy path for an attacker to follow.
This process turns you into a "white hat" hacker, probing your own defenses before someone else does. You're not just looking at a list of devices; you're analyzing the data flows and relationships between them. That visual context is what makes it so much easier to spot illogical setups and insecure configurations that you’d almost certainly miss in a spreadsheet.
Continuously checking these connections is a cornerstone of good security hygiene, which is why having solid network monitoring best practices in place is so crucial for long-term protection.
At the end of the day, using your small business network diagram for security isn't a one-and-done task. It’s an ongoing process of review and refinement that helps you build a more resilient, secure business—and safeguard your company from incredibly disruptive and costly cyber threats.
Frequently Asked Questions About Network Diagrams
Even with a great plan, a few questions always come up when you're creating or maintaining a network diagram for your small business. I hear these all the time from business owners, so let's walk through them to make sure you get the most value out of your efforts.
One of the first things people ask is how often they need to mess with their diagram once it's done. It's a fair question—you don't want to create busy work for yourself or your team.
How Often Should I Update My Network Diagram?
Think of your diagram as a living document, not something you create once and file away. A solid rule of thumb is to review and update it quarterly or anytime a major change happens on your network. This discipline keeps it a reliable tool instead of an outdated source of confusion.
What counts as a "significant change"?
- Adding a new server, switch, or firewall.
- Switching your internet service provider.
- A major office reconfiguration that moves equipment around.
- Rolling out new hardware, like a VoIP phone system or security cameras.
Staying on top of these updates is what makes your diagram a genuinely valuable asset for troubleshooting and planning future upgrades.
Physical vs. Logical Diagrams
Another point of confusion I see often is the difference between a physical and a logical diagram. They might sound similar, but they show two completely different views of your network. Getting the distinction right is key.
A physical diagram is basically an architectural blueprint. It shows the actual, tangible layout of your network hardware—things like server rack locations, room numbers, specific cable runs, and which computer is plugged into which port on a switch.
A logical diagram, on the other hand, shows how information and data flow. It's less about where things are and more about how they talk to each other. This map focuses on IP address schemes, subnets, and routing protocols.
For most small businesses, the sweet spot is a hybrid diagram that blends key physical and logical information. This approach usually offers the most practical, day-to-day value.
When you're deciding which to create, start with whatever gives you the most immediate benefit. For a small business, a clear map of your core hardware and how it's connected (that hybrid approach) is almost always the best place to begin.
Do I Need to Map Every Single Device?
The short answer is: it depends on what you're trying to accomplish. You absolutely do not need to map every single device down to the last workstation, especially on your first draft.
If you're doing high-level strategic planning or handing it over to a new IT provider, just mapping your core infrastructure is usually enough. This includes your router, switches, firewalls, servers, and wireless access points. You can simply represent user groups with single icons, like "Sales Team PCs (x10)."
However, if you're chasing down a tricky network issue or conducting a detailed security audit, you’ll want a map that includes every connected device. A great strategy is to map all your critical infrastructure first, then add individual computers and endpoints as time allows or as the need arises. For more advanced strategies, you can also explore different methods of telecom network optimization to improve performance.
Who Should Have Access to This Diagram?
Finally, let's talk about a crucial step: controlling access. Your network diagram is a highly sensitive and confidential document. It’s a literal map of your company's digital assets and defenses.
Access should be on a strict, need-to-know basis. This typically means the business owner, office manager, and your primary IT support team or provider. Store it securely in a password-protected folder or on an encrypted drive. Definitely avoid leaving printed copies lying around where they can be easily seen or taken.
